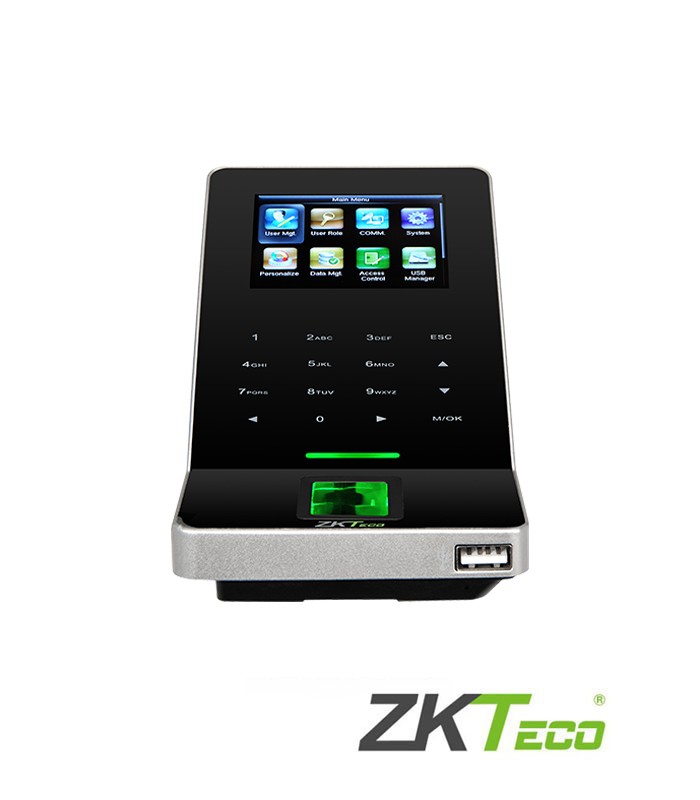

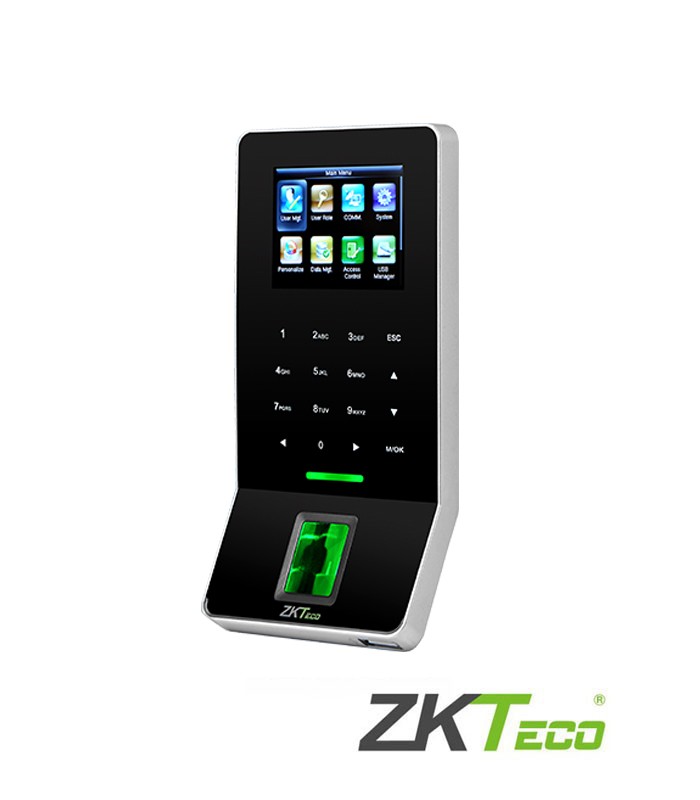

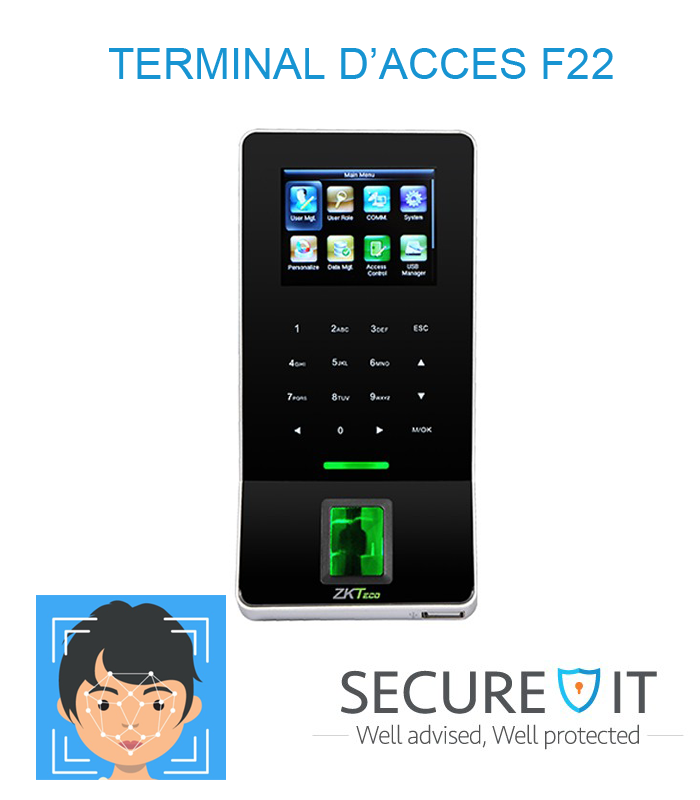

Terminal d'accès F22
Lecteur de contrôle d'accès 3en 1 empreinte digitale, badge RFID et code PIN Communication RS232/485, TCP/IP, USB-host, Access Control Interface, TFT LCD Color Screen,Webserver, Anti-passback, 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell,Dimension(WxDxH) 80×183×42mm, garantie 1 AN
Spécification :
Display | 2.4-inch TFT LCD Color Screen |
Fingerprint Capacity | 3,000 |
Card Capacity | 5000(Optional) ID or Mifare card |
Transaction Capacity | 30,000 |
Sensor | BioID Sensor/ SilkID Sensor (optional) |
Algorithm Version | ZKFinger VX10.0 |
Communication | RS232/485, TCP/IP, USB-host,Wi-Fi |
Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
Wiegand Signal | Input, Output |
Aux. Input | 1ea for linkage function |
Functions | DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) |
Power Supply | 12V DC,3A |
Operating Temperature | 0 ℃- 45℃ |
Operating Humidity | 20%-80% |
Dimension(LxWxH) | 158.5x78.0x19.4mm |
SDK and software | Standalone SDK,ZKAccess3.5 software |
